Automotive Electronic Relay Tester Car Battery Checker LED Indicator Light Universal DC 12V
(0 Reviews)
In stock
Price:
₱411.00
Refund:
Share:
Sold By
CommuniTechShop
125 Durian Park, Old Domestic Road, 191 Zone 20, Pasay City, Philippines
(0 customer reviews)
Top Selling Products
- CNBJ-707 is a quick go/no-go tester relays that provides with indication of the general health and functioning of the most common Automotive relays. Tester will check for proper functioning of the relay contacts by connecting the car battery (11V--15V) to the relay coil. Tester will watch the pin configuration,the time to contacts closure and opening, consistency of the relay during each test session, Tester will light the GREEN LED if all passed during the test session,if not light the RED LED.
Introduction:
- 1.Connect the power leads to the car battery --black alligator clip to negative terminal, red alligator clip to positive terminal.
- 2. Tester is powered up when the LED illuminates in RED.
- 3. Check the relay before plugging into the tester. If it's a 4 pin relay,select"4 pin" on the tester.If it's a 5 pin relay,select"5 pin"on the tester.
- 4. Plug in the relay into one of the three receptacles.
- 5. Press the "TEST" button.
- 6.Tester will check the pin configuration of the unknown relay. Tester will light the RED LED if the unkonwn relay is not the same to the most of common automotive relaysor the pin of the unknown relay is destroyed.
- 7.Tester will open and close the relay 10 times for testing the time to contacts closure and opening if the pin configuration of the relay is right. Tester will light the RED LED immediately if the time is overtime.
- 8.Tester will check the consistency of the relay after testing the time to contacts closure and opening ten times. Tester will light the GREEN LED if the test passed, if not light the RED LED.
- 9. Disconnect power leads from the car battery and remove relay from the tester.
There have been no reviews for this product yet.
Related Products
₱626.00
Lanbowan RP SMA, Pigtails 20 CM Heavy duty I RG402 I Recommended for Dish Antennas
Lahat Point:
0
₱341.00
Multifunctional Wire Stripper Pliers Cable Cutter Crimping Stripping Hand Tool Rubber Handle
Lahat Point:
0
₱6,995.00
Pro'sKit 8PK-MA009 Portable Optical Fiber Magnifying Glass 200X Adjustable Fiber Optic Check Kit
Lahat Point:
0
₱6,009.00
OEO Optical Fiber Amplifier Single /multi-mode Fiber Optic transceiver Gigabit SFP-SFP Fiber Optic
Lahat Point:
0
₱242.00

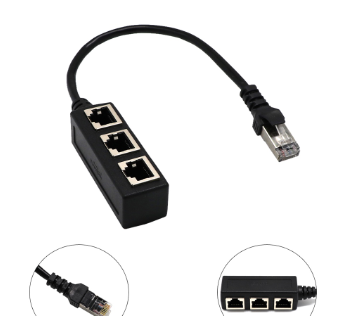

1 to 3 RJ45 Ethernet LAN Network Cable Splitter 3 Way Extender Adapter Connector
